From Loops to Graphs: The Edge That Was Never There
TL;DR
- Graph engineering arrived in mid-2026 as the layer after loops, and most takes are LangGraph tutorials or “goodbye loops” hype. The useful idea underneath is smaller and older than either.
- An edge exists only when data crosses between two steps: the output of one is the input of the next. “And then” is not an edge. It is sequence, and a loop hands you sequence for free whether the work needs it or not.
- A loop scales in depth (more iterations on one thread); a graph scales in width (independent steps run in parallel). But width is capped by Amdahl’s serial fraction, which is just a formal name for your real edges. So the skill is finding which edges are actually there.
You are here. The Loop Engineering series taught you to wrap work in a recursive goal and let it iterate on one thread. Graph engineering changes one assumption: that the work was ever one thread. If you need the ground under this, reread Anatomy of a Loop first, because this essay dissects its trace.
“Graph engineering” broke across my feed in July 2026, right on schedule. LangGraph crossed 65 million downloads a month, a row of Medium posts declared “goodbye loops,” and every thread pitched agent graph engineering as the layer that comes after loop engineering. Strip away the framework diagrams and most of them make the same quiet mistake. They draw an edge between two steps that never shared any data.
Here’s the claim this essay defends, and it’s the one idea the rest of this series is built on:
An edge exists only when data crosses between two steps: the output of one is the input of the next. “And then” is not an edge. It is sequence, and sequence is what a loop hands you for free, whether the work needs it or not.
You already know this idea, because you’ve written a Makefile. The agent world rediscovered the dependency graph this summer and, in the excitement, skipped the part where you prove the edge is real. Get it right and your graph runs wide. Get it wrong and you’ve shipped a slow loop with extra YAML. That difference decides whether “going parallel” buys you anything at all.
What is an edge, actually?

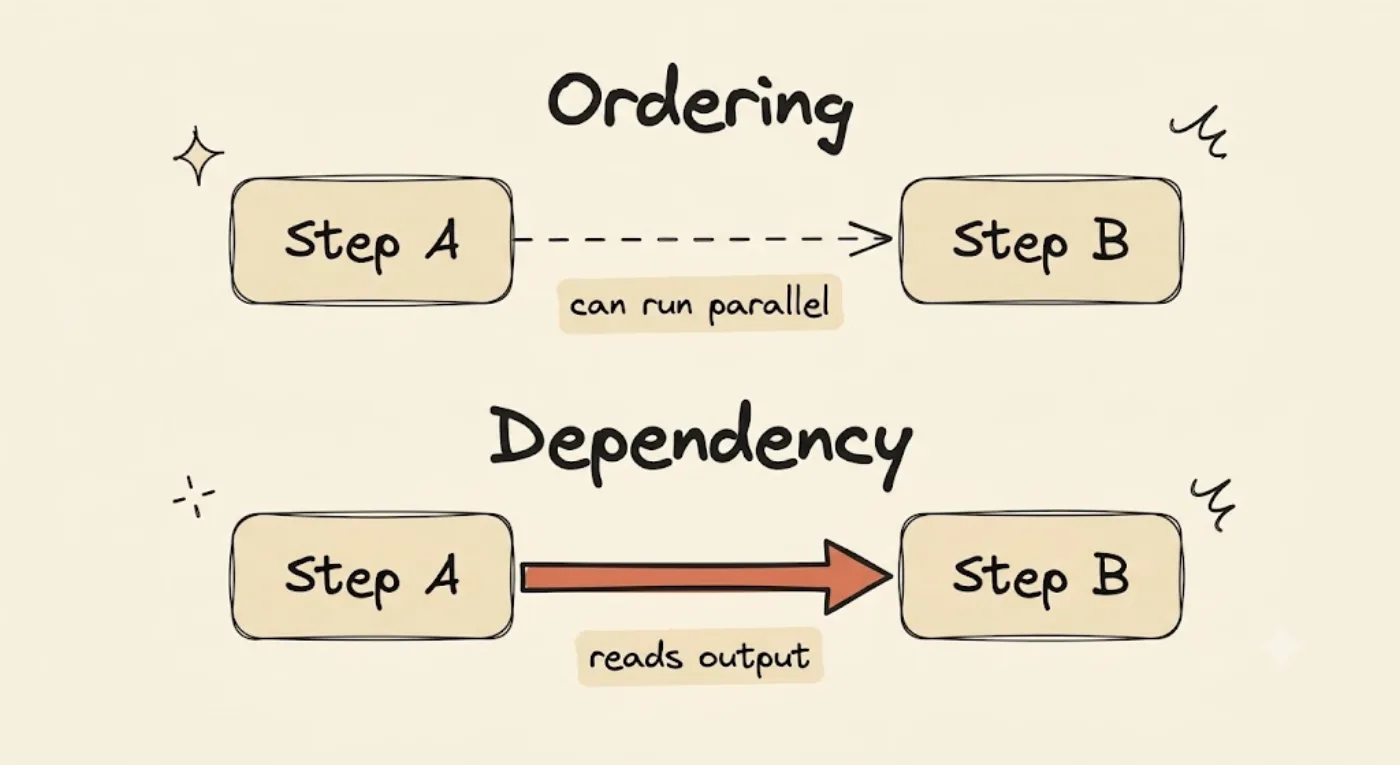

An edge is a dependency, not an ordering. Step B has an edge from step A only when B reads what A produced. Make has modeled this since 1976: its nodes are files, its edges are the inter-file dependencies, and that explicit dependency graph is exactly what lets it build targets in parallel. Everything else you sketched between boxes is just sequence.
The incumbent framing blurs this on purpose, and reasonably so. LangGraph, which popularized the term, says “edges define what happens next”, and as a framework primitive that’s fine. The catch is that “what happens next” quietly fuses two different relationships. One is ordering: A runs, then B runs. The other is dependency: B needs what A produced. Only the second one forbids parallelism.
That distinction is the whole game. Two steps joined by ordering alone can run at the same time, on different threads, and nothing breaks. Two steps joined by a real dependency can’t, because the second would read state that doesn’t exist yet. When you draw an arrow, you’re making a claim about data. Most of the arrows in the graph diagrams going around this month are claims nobody checked.
The edge that was never there
In our own published loop, two fixes ran back to back, and the second one never read a single byte the first one wrote. That run is our lint-sweeper walkthrough from the loop series. Baseline flake8 reported 3 findings. Iteration 1 removed an unused import in gen-agent-map.py, leaving 2. Iteration 2 added two blank lines in gen-dist-metadata.py, reaching 0, and the loop stopped on the clean exit code. The whole run, baseline check plus both fixes, took 124 seconds. Two files, two unrelated defects, no shared data.
So why did they run one after the other? Not because of any dependency. The loop serialized them because its one-step is defined as “fix one file per iteration.” It’s depth-first by construction. Iteration 2 didn’t wait on iteration 1’s output; it waited on iteration 1’s turn. Those are different things, and confusing them is the exact error this series is about.
The two fixes did share one thing: the verifier gate that re-ran flake8 over every file each pass. That’s worth naming precisely, because it looks like an edge and isn’t. It’s a control edge, a “when do I check,” not a data edge, a “what do I read.” “And then the verifier ran” is sequence. That’s no reason to serialize the two fixes, any more than running your test suite once forces you to write the two features it covers in a fixed order.
fix gen-agent-map.py fix gen-dist-metadata.py (iteration 1) (iteration 2) | | | <- no data edge here -> | v v flake8 --extend-ignore=E501 (shared verifier gate)Picture it and the mistake is obvious. There is no horizontal arrow between the two fixes, because none was ever needed. A graph would section these into two lanes and finish in one pass. The loop spent width as depth and charged us the wall-clock for it.
The same test, on our own pipeline

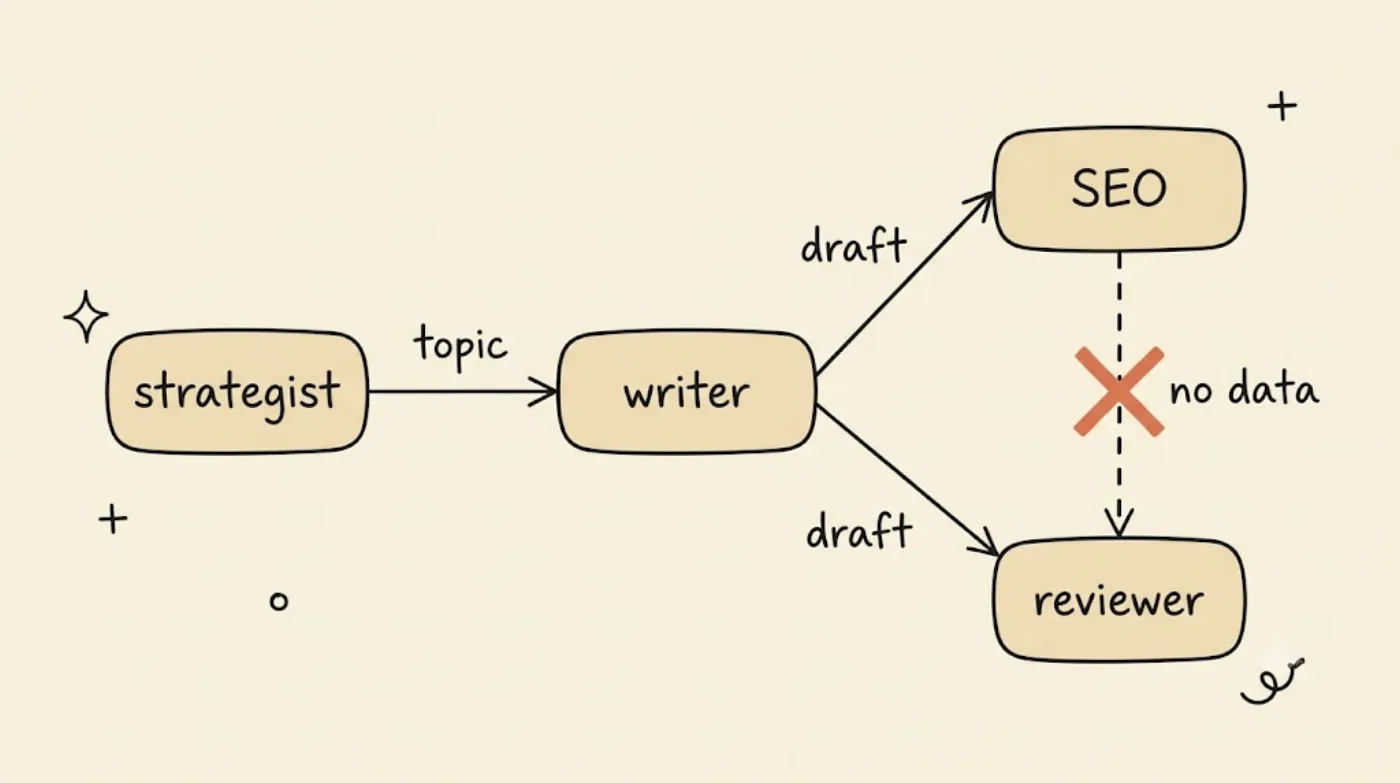

Run the same test on the four-agent chain that publishes posts like this one, and two of its arrows fail it. The chain reads as a straight line: content-strategist → blog-writer → seo-optimizer → reviewer. For each arrow, ask the only question that matters. Does the downstream agent read what the upstream one produced, or does it just run next? The answers come from the four agent definitions, not from a run.
| Arrow | Real edge? | What crosses |
|---|---|---|
| strategist → writer | thin | The topic, at most. The writer’s definition never names the strategist’s output. It reads the strategy doc, re-derives the content type from its own decision tree, picks its own keywords, and runs its own overlap check. |
| writer → seo-optimizer | yes | The draft. The optimizer reads the frontmatter and body the writer produced. |
| writer → reviewer | yes | The draft. The reviewer reads the same file. |
| seo-optimizer → reviewer | no | Nothing. The reviewer re-runs its own SEO checks from the draft and never opens the optimizer’s report. |
The real shape is not a line. The optimizer and the reviewer both hang off the writer, independent of each other, and the reviewer silently redoes the SEO work. This is not a tidy audit, which is the point of running it honestly: two arrows are real edges, one is thin, and one was never there.

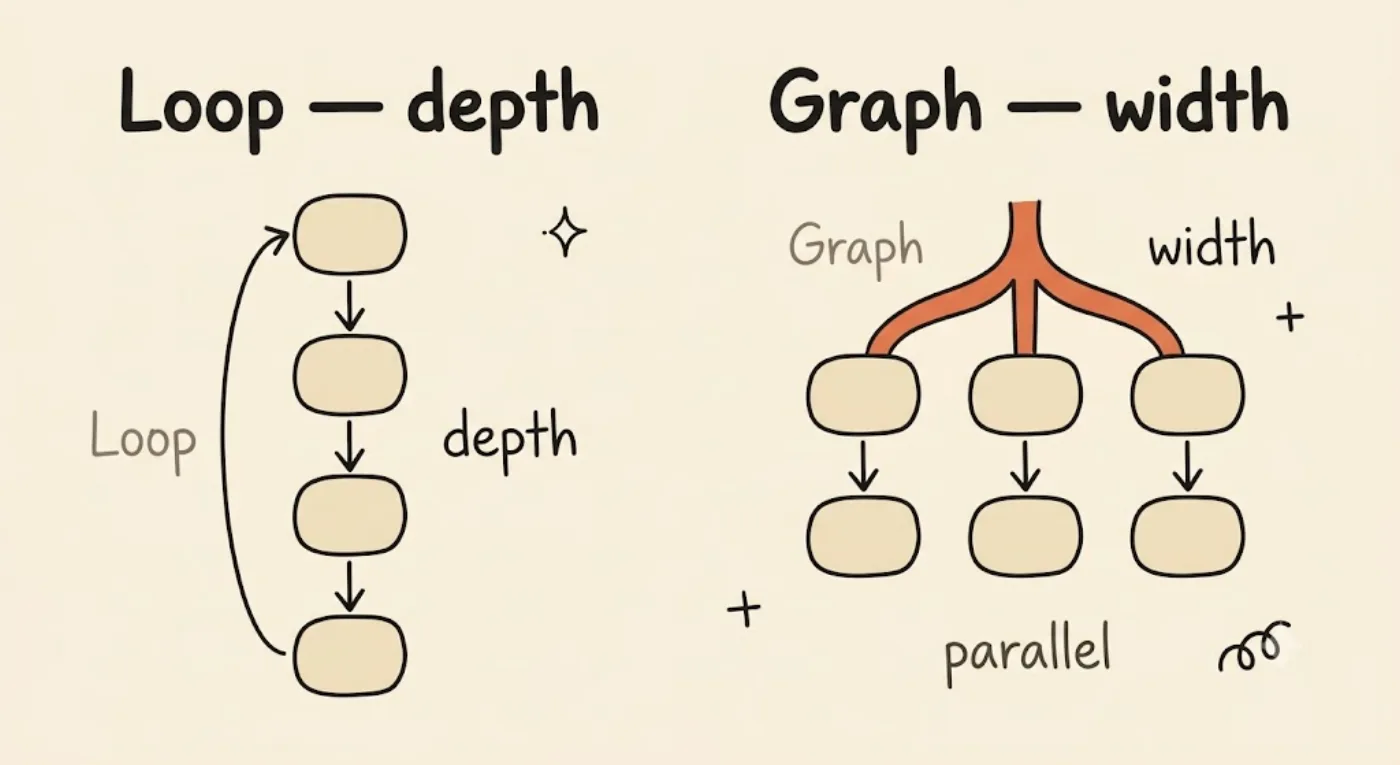

Loops scale in depth, graphs scale in width
A loop’s only axis is depth: one more iteration on one thread. A graph adds a second axis, width: independent steps running at once. Which axis you need is set by your edges, not by your ambition. Anthropic calls the width move “sectioning”, breaking a task into independent subtasks run in parallel, and it’s the same fan-out your CI pipeline has done for years.
Depth is not the enemy here. When each step genuinely depends on the last, depth is correct. A refactor that must compile before the next edit is a real chain of edges, and no amount of parallelism helps. The failure is using depth for work that had no edges, which is what our lint sweeper did and what most single-threaded agent runs do by default.
This reframes the “goodbye loops” crowd’s whole pitch. A loop is just a graph with one node and a back-edge to itself. You don’t replace loops; you stop paying depth for work that belonged in width. To see the mechanics of actually running those lanes without collisions, our parallel worktrees walkthrough is the how; this essay is only the why. If you have never fanned work across agents at all, the multi-agent primer is the on-ramp.
Here’s the map the rest of this series returns to. Every loop term has a graph term hiding under it.
| Loop term | Graph term | What it actually is |
|---|---|---|
| Iteration | Node | One unit of work |
| Re-run / back-edge | Cycle | A node that feeds itself |
| Stop condition | Sink / terminal node | Where the graph ends |
| One-file-per-iteration batching | (missing) parallel section | Independent work, run serially |
| Memory spine / state file | Shared state on edges | What crosses between nodes |
| Heartbeat | Scheduler / trigger | What starts a run |
| Maker then checker | Node → edge → node | A real data dependency |
| ”And then” | (no edge) | Sequence with no data crossing |
Isn’t this just LangGraph, and isn’t a graph strictly better?
Yes, it’s old wine, and no, a graph is not free. Both concessions are worth making out loud, because the honest version of graph engineering lives between them. Make drew this dependency graph 50 years ago, and LangChain, which owns the term today, says as much: it calls graph engineering “the latest terminology for an established practice.” That’s the point, not a knock. The value was never novelty. It’s a mature discipline, prove the edge, finally applied to a place that skipped it.

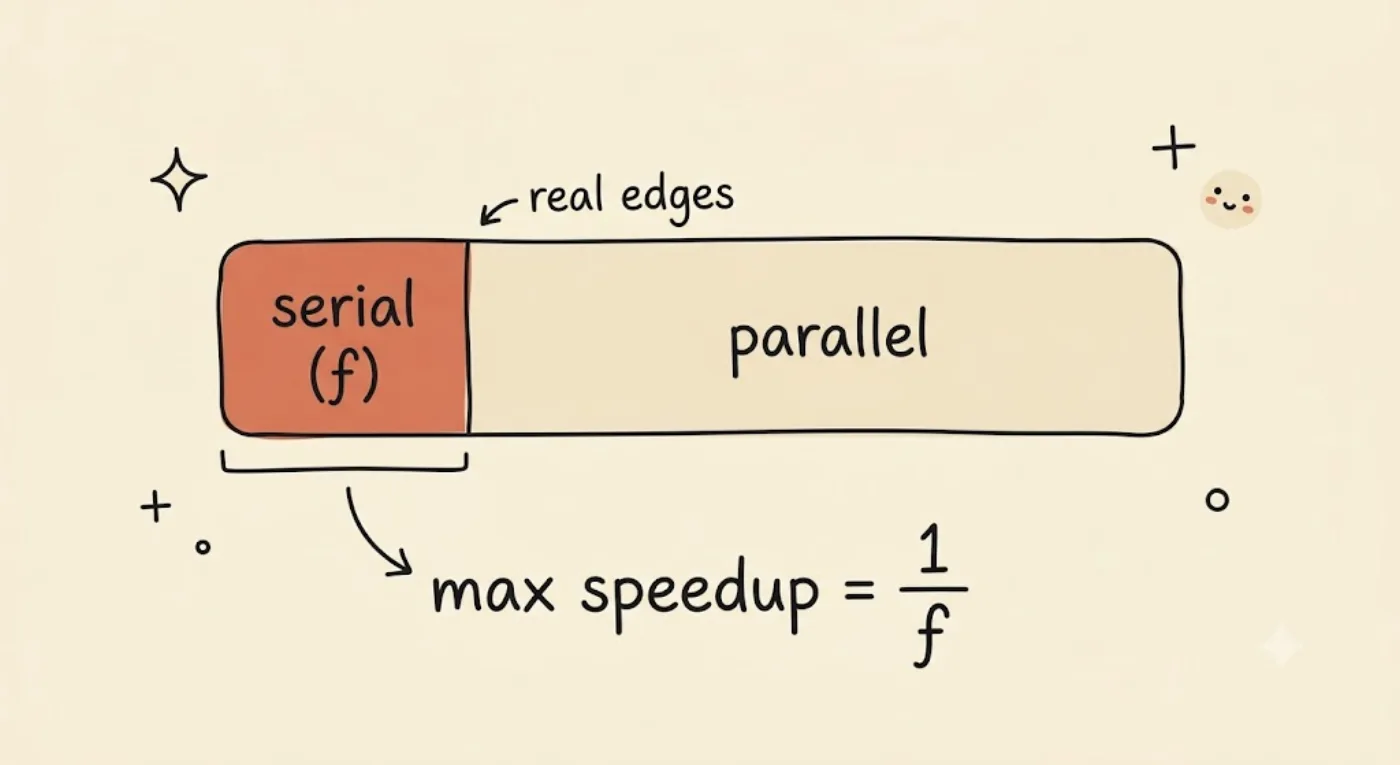

The second concession is the one the hype skips. A graph beats a loop only where the work allows it, because width has a hard ceiling. Amdahl’s law puts a number on it: if a fraction f of the work is serial, your maximum speedup is 1/f no matter how many lanes you add. Ten percent serial caps you at 10x. That serial fraction is precisely the true edges you can’t delete. Width buys you speed only on the part that had no edges in the first place.
That leaves two symmetric ways to get it wrong, and I’ve shipped both. Draw an edge that isn’t there and you over-serialize: a slow loop wearing a graph’s clothes, now paying fan-out overhead for nothing. Miss an edge that is there and you get a race: two lanes writing state the other one needed, and a bug that only shows up under load. The graph doesn’t spare you from thinking about dependencies. It forces the thinking earlier, into a diagram other people can see.
Agent graph engineering is finding the real edges
Agent graph engineering is not “wire more nodes.” It’s the discipline of proving, for every arrow you want to draw, that data actually crosses it, and deleting the ones where it doesn’t. In the loop era you designed a stop condition. In the graph era you design the edge set, and you’ll find most steps carry fewer edges than your loop’s sequence implied.
There’s a five-minute version you can run today. Take the last loop you shipped and walk each consecutive pair of steps with one question: did the second step read what the first step wrote? Every honest “no” is width you spent as depth. Do that once on a real run and the abstract idea turns concrete fast, because you’ll recognize your own 124-second lint sweeper in it.
I will be straight about where we stand. We learned loops in public, one published post at a time (the full loop series maps all nine parts), and we are learning graphs the same way. This is the definition and a receipt from our own run, not a war story about a production fleet of a hundred agents. The 11 parts after this one work outward from the single idea above: finding edges, fan-out and join, shared state and the races it invites, and the cases where a cycle is still the right answer. The glossary table is the map.
What to do before you draw the graph
The move from loops to graphs is less an upgrade you install than a question you start asking. An edge exists only when data crosses between two steps, so before you fan anything out, find the steps that truly depend on each other and cut every arrow that was only ever “and then.” What remains is your serial fraction, and Amdahl already told you that’s the ceiling on what going wide can do for you.
So do one concrete thing this week. Open the last agent run you serialized and mark, for each step, whether it read the previous step’s output. The nos are your width. The yeses are your real graph, and they’re usually fewer than you feared.
The honest limit: drawing the right edges is judgment, not a lint rule, and a graph with confident wrong edges fails more quietly than a loop ever did. A loop that stalls is obvious. A graph that races is a Tuesday incident. We’re early in learning where that line sits, and the rest of this series is us walking it in the open.
FAQ
What is agent graph engineering?
A: Agent graph engineering means representing an agent workflow as a graph of nodes (steps) connected by edges (data dependencies), with shared state flowing along those edges, so independent work can run in parallel instead of being serialized. It is the successor framing to loop engineering, and older than both: build systems have modeled dependency graphs since Make in 1976.
What is the difference between a loop and a graph for AI agents?
A: A loop scales in depth: it repeats one thread until a stop condition holds. A graph scales in width: it runs independent steps in parallel. A loop is really a graph with one node and a back-edge, so the useful question is not “loop or graph” but “which of these steps actually share data.” Use width only where steps have no data edge between them.
When is “and then” actually an edge?
A: Only when the second step reads what the first step produced. If step B would run identically without step A’s output, there is no edge between them, just sequence, and B can run in parallel with A. That test, “would this step change if the previous one had not run,” is how you tell a real dependency from a habit.
